SKY LIFT

Price 519999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SKY LIFT Specification

Dimension (L*W*H)
3.0 3.5 Meter Overall Width (Trolley Base) 1.5 1.8 Meter Overall Height (Transport Position) 2.2 2.5 Meter Meter (m)

Weight
1100-1300 Kilograms (kg)

Usage & Applications
Sector Typical Use Municipal Corporations Streetlight maintenance, pole repair, banner installation Construction & Infrastructure Finishing, painting, fa ade work, ceiling installation Industrial Plants Equipment maintenance, duct and pipe line servicing Electrical Contractors Transformer and overhead line inspection Advertising & Signage Hoarding and LED board installation Airports & Railway Stations Lighting and surveillance maintenance Institutions & Facilities Building upkeep, cleaning, inspection at h

No Of Axel
2 NOS

Capacity
200-250 Kg

Surface Finish
1. Surface Preparation: All MS components are degreased, derusted, and shot blasted before painting. Weld joints and edges are ground smooth to ensure even coating adhesion. Proper surface cleaning ensures long paint life and durability. 2. Coating System: Stage Type of Coating / Paint Purpose 1. Primer Coat Zinc Chromate or Epoxy Primer Anti-corrosion base protection 2. Intermediate Coat Synthetic Enamel / Epoxy Paint Adhesion and smooth surface 3. Finish Coat PU (Polyurethane) / Industrial Enamel Paint Weather resistance & glossy finish 3. Final Appearance: Color: As per customer requirement (Standard Yellow / Orange / Blue / White) Finish Type: Glossy / Semi-gloss / Matt (optional) Coating Thickness: 80 120 microns (average) Protection Level: Resistant to rust, humidity, and UV exposure 4. Special Options: Powder Coating for superior finish and durability (optional) Hot-Dip Galvanizing available for coastal or high-corrosion environments

Product Type
Other

Trailer Type
Full Trailer

Trailer Use
Truck, Tractor

Trolley Use
Industrial

Structure
Platform

Material
Iron

Max Load
800 1000 Kilograms (kg)

Length
10 12 Meter (m)

SKY LIFT Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
20 Days

About SKY LIFT

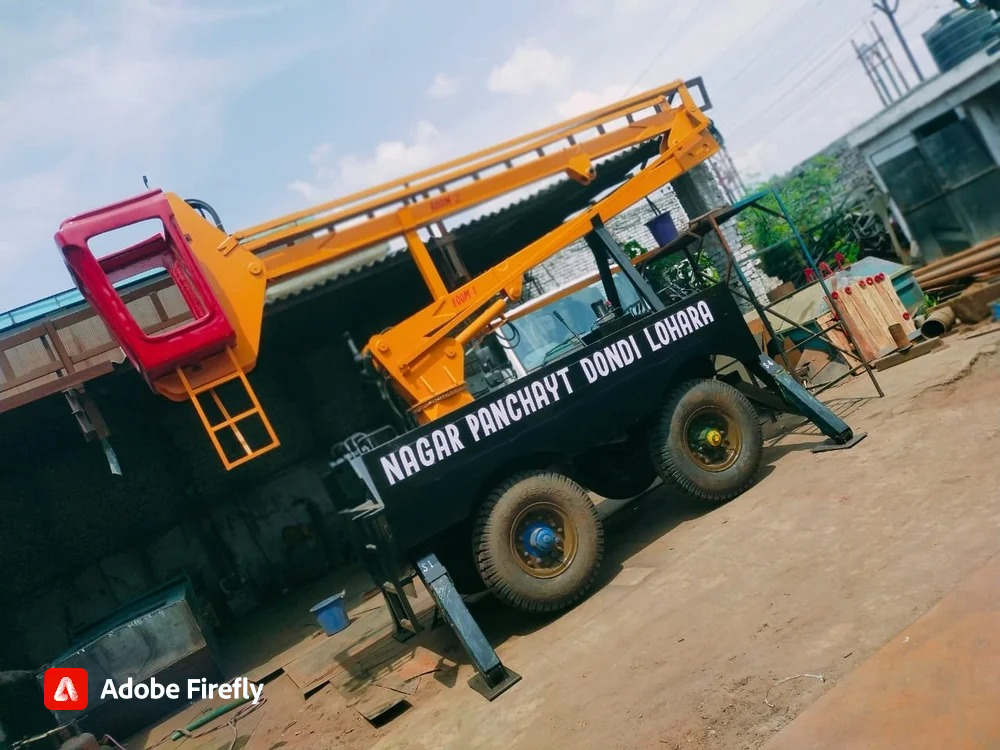

12 Meter Sky Lift Description

The 12 Meter Sky Lift is a hydraulic aerial work platform designed for safe and efficient lifting operations at heights up to 12 meters. It is ideal for maintenance, installation, and repair work in areas such as street lighting, building maintenance, signage, electrical work, and industrial operations.

Key Features:

Working Height: Up to 12 meters
Platform Height: 10 meters (approx.)
Lifting Mechanism: Double/Triple stage hydraulic system
Load Capacity: 200250 kg (2 persons + tools)
Rotation: 360 rotation (optional)
Platform Type: Non-slip work platform with guard rails
Power Source: Vehicle PTO / DC Electric / Engine-driven hydraulic pump
Control System: Dual control (at platform and base) for operator convenience and safety
Stabilizers: Hydraulic outriggers for maximum stability during operation
Chassis Mounting: Suitable for mounting on commercial vehicles (TATA, Eicher, Mahindra, etc.)
Safety Features: Emergency stop switch, hydraulic lock valve, overload protection, and safety harness anchorage points
